TF2

class TF2 : public TF1

    public:

                   TF2 TF2(char* name, char* formula, Float_t xmin = 0, Float_t xmax = 1, Float_t ymin = 0, Float_t ymax = 1)
                   TF2 TF2(char* name, void* fcn, Float_t xmin = 0, Float_t xmax = 1, Float_t ymin = 0, Float_t ymax = 1, Int_t npar = 0)
                   TF2 TF2()
                   TF2 TF2(char* name, Double_t (*)(Double_t*, Double_t*) fcn, Float_t xmin = 0, Float_t xmax = 1, Float_t ymin = 0, Float_t ymax = 1, Int_t npar = 0)
                   TF2 TF2(TF2& f2)
          virtual void ~TF2()
               TClass* Class()
          virtual void Copy(TObject& f2)
         virtual Int_t DistancetoPrimitive(Int_t px, Int_t py)
          virtual void Draw(Option_t* option)
          virtual void DrawCopy(Option_t* option)
          virtual void DrawF2(char* formula, Float_t xmin, Float_t xmax, Float_t ymin, Float_t ymax, Option_t* option)
          virtual void ExecuteEvent(Int_t event, Int_t px, Int_t py)
                 Int_t GetContour()
                 Int_t GetNpy()
      virtual Double_t GetRandom()
          virtual void GetRange(Float_t& xmin, Float_t& xmax)
          virtual void GetRange(Float_t& xmin, Float_t& ymin, Float_t& zmin, Float_t& xmax, Float_t& ymax, Float_t& zmax)
          virtual void GetRange(Float_t& xmin, Float_t& ymin, Float_t& xmax, Float_t& ymax)
       virtual Float_t GetYmax()
       virtual Float_t GetYmin()
       virtual TClass* IsA()
          virtual void Paint(Option_t* option)
          virtual void SetContour(Int_t nl = 20)
          virtual void SetNpy(Int_t npy = 100)
          virtual void SetRange(Float_t xmin, Float_t ymin, Float_t xmax, Float_t ymax)
          virtual void SetRange(Float_t xmin, Float_t xmax)
          virtual void SetRange(Float_t xmin, Float_t ymin, Float_t zmin, Float_t xmax, Float_t ymax, Float_t zmax)
          virtual void ShowMembers(TMemberInspector& insp, char* parent)
          virtual void Streamer(TBuffer& b)

  Data Members

    protected:

      Float_t fYmin     Lower bound for the range in y
      Float_t fYmax     Upper bound for the range in y
        Int_t fNpy      Number of points along y used for the graphical representation
        Int_t fNlevels  Number of contour levels

See also

TF3

Class Description

 a 2-Dim function with parameters
 TF2 graphics function is via the TH1 drawing functions.

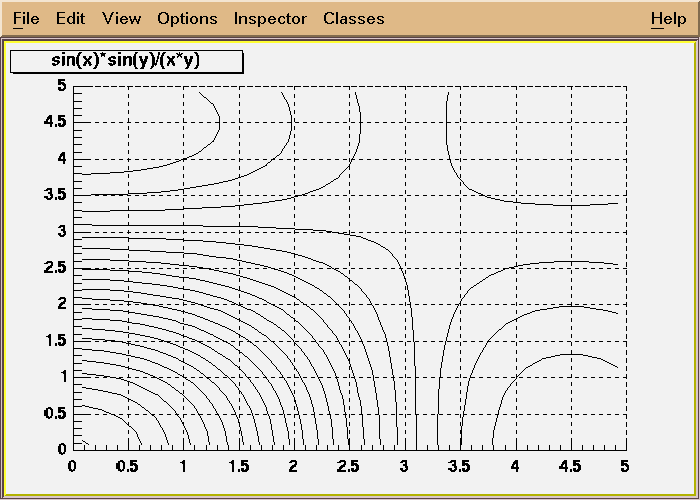

      Example of a function

   TF2 *f2 = new TF2("f2","sin(x)*sin(y)/(x*y)",0,5,0,5);
   f2->Draw();

/*

*/


      See TF1 class for the list of functions formats

*-*-*-*-*-*-*-*-*-*-*F2 default constructor*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  ======================

*-*-*-*-*-*-*F2 constructor using a formula definition*-*-*-*-*-*-*-*-*-*-*
*-*          =========================================
*-*
*-*  See TFormula constructor for explanation of the formula syntax.
*-*
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*F2 constructor using a pointer to an interpreted function*-*-*
*-*          =========================================================
*-*
*-*   npar is the number of free parameters used by the function
*-*
*-*  Creates a function of type C between xmin and xmax and ymin,ymax.
*-*  The function is defined with npar parameters
*-*  fcn must be a function of type:
*-*     Double_t fcn(Double_t *x, Double_t *params)
*-*
*-*  This constructor is called for functions of type C by CINT.
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*F2 constructor using a pointer to a compiled function*-*-*-*-*
*-*          =====================================================
*-*
*-*   npar is the number of free parameters used by the function
*-*
*-*   This constructor creates a function of type C when invoked
*-*   with the normal C++ compiler.
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*F2 default destructor*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  =====================

*-*-*-*-*-*-*-*-*-*-*Copy this F2 to a new F2*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  ========================

*-*-*-*-*-*-*-*-*-*-*Compute distance from point px,py to a function*-*-*-*-*
*-*                  ===============================================
*-*  Compute the closest distance of approach from point px,py to this function.
*-*  The distance is computed in pixels units.
*-*
*-*  Algorithm:
*-*
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*Draw this function with its current attributes*-*-*-*-*
*-*                  ==============================================
*-* NB. You must use DrawCopy if you want to draw several times the same
*-*     function in the current canvas.
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*Draw a copy of this function with its current attributes*-*-*
*-*            ========================================================
*-*
*-*  This function MUST be used instead of Draw when you want to draw
*-*  the same function with different parameters settings in the same canvas.
*-*
*-* Possible option values are:
*-*   "SAME"  superimpose on top of existing picture
*-*   "L"     connect all computed points with a straight line
*-*   "C"     connect all computed points with a smooth curve.
*-*
*-* Note that the default value is "F". Therefore to draw on top
*-* of an existing picture, specify option "SL"
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*Draw formula between xmin,ymin and xmax,ymax*-*-*-*-*-*-*-*
*-*                ============================================
*-*

*-*-*-*-*-*-*-*-*-*-*Execute action corresponding to one event*-*-*-*
*-*                  =========================================
*-*  This member function is called when a F2 is clicked with the locator
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*Return a random number following this function shape*-*-*-*-*-*-*
*-*        ====================================================
*-*

*-*-*-*-*-*-*-*-*-*-*Return range of a 2-D function*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  ==============================

*-*-*-*-*-*-*-*-*-*-*Return range of function*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  ========================

*-*-*-*-*-*-*-*-*Paint this 2-D function with its current attributes*-*-*-*-*
*-*              ===================================================

*-*-*-*-*-*-*-*Set the number of points used to draw the function*-*-*-*-*-*
*-*            ==================================================

*-*-*-*-*-*Initialize the upper and lower bounds to draw the function*-*-*-*
*-*        ==========================================================

Inline Functions

              Int_t GetContour()
              Int_t GetNpy()
               void GetRange(Float_t& xmin, Float_t& ymin, Float_t& zmin, Float_t& xmax, Float_t& ymax, Float_t& zmax)
            Float_t GetYmin()
            Float_t GetYmax()
               void SetContour(Int_t nl = 20)
               void SetRange(Float_t xmin, Float_t ymin, Float_t xmax, Float_t ymax)
               void SetRange(Float_t xmin, Float_t ymin, Float_t zmin, Float_t xmax, Float_t ymax, Float_t zmax)
            TClass* Class()
            TClass* IsA()
               void ShowMembers(TMemberInspector& insp, char* parent)
               void Streamer(TBuffer& b)
