TGeometry

class TGeometry : public TNamed

    public:

            TGeometry TGeometry()
            TGeometry TGeometry(Text_t* name, Text_t* title)
            TGeometry TGeometry(TGeometry&)
         virtual void ~TGeometry()
         virtual void Browse(TBrowser* b)
         virtual void cd(Text_t* path = 0)
              TClass* Class()
         virtual void Draw(Option_t* option)
              Float_t GetBomb()
               TNode* GetCurrentNode()
           THashList* GetListOfMaterials()
           THashList* GetListOfMatrices()
               TList* GetListOfNodes()
           THashList* GetListOfShapes()
           TMaterial* GetMaterial(Text_t* name)
           TMaterial* GetMaterialByNumber(Int_t number)
               TNode* GetNode(Text_t* name)
          TRotMatrix* GetRotMatrix(Text_t* name)
          TRotMatrix* GetRotMatrixByNumber(Int_t number)
              TShape* GetShape(Text_t* name)
              TShape* GetShapeByNumber(Int_t number)
      virtual TClass* IsA()
       virtual Bool_t IsFolder()
         virtual void ls(Option_t* option = rsn2)
         virtual void Node(Text_t* name, Text_t* title, Text_t* shapename, Double_t x = 0, Double_t y = 0, Double_t z = 0, Text_t* matrixname, Option_t* option)
         virtual void RecursiveRemove(TObject* obj)
         virtual void SetBomb(Float_t bomb = 1.4)
         virtual void SetCurrentNode(TNode* node)
         virtual void ShowMembers(TMemberInspector& insp, char* parent)
         virtual void Streamer(TBuffer& b)

  Data Members
    private:

        THashList* fMaterials        Collection of materials
        THashList* fMatrices         Collection of rotation matrices
        THashList* fShapes           Collection of shapes
            TList* fNodes            Collection of nodes
            TNode* fCurrentNode      Pointer to current node
       TMaterial** fMaterialPointer  Pointers to materials
      TRotMatrix** fMatrixPointer    Pointers to rotation matrices
          TShape** fShapePointer     Pointers to shapes
           Float_t fBomb             Bomb factor for exploded geometry

Class Description

*-*-*-*-*-*-*-*-*-*-*-* T G E O M E T R Y  description *-*-*-*-*-*-*-*-*-*-*
*-*                    ===============================
*-*
*-*    The Geometry class describes the geometry of a detector.
*-*    The current implementation supports the GEANT3 style description.
*-*    A special program provided in the ROOT utilities (toroot) can be used
*-*    to automatically translate a GEANT detector geometry into a ROOT geometry.
*-*
*-*   a Geometry object is entered into the list of geometries into the
*-*     ROOT main object (see TROOT description) when the TGeometry
*-*     constructor is invoked.
*-*   Several geometries may coexist in memory.
*-*
*-*   A Geometry object consist of the following linked lists:
*-*        - the TMaterial list (material definition only).
*-*        - the TRotmatrix list (Rotation matrices definition only).
*-*        - the TShape list (volume definition only).
*-*        - the TNode list assembling all detector elements.
*-*
*-*   Only the Build and Draw functions for a geometry are currently supported.
*-*
*-*---------------------------------------------------------------------------
*-*- The conversion program from Geant to Root has been added in the list
*-*  of utilities in utils directory.(see g2root)
*-*  The executable module of g2root can be found in $ROOTSYS/bin/g2root.
*-*
*-*  To use this conversion program, type the shell command:
*-*        g2root  geant_rzfile macro_name
*-*
*-*  for example
*-*        g2root na49.geom na49.C
*-*  will convert the GEANT RZ file na49.geom into a ROOT macro na49.C
*-*
*-*  To generate the Geometry structure within Root, do:
*-*    Root > .x na49.C
*-*    Root > na49.Draw()
*-*    Root > wh.x3d()    (this invokes the 3-d Root viewver)
*-*    Root > TFile gna49("na49.root","NEW")  //open a new root file
*-*    Root > na49.Write()                    //Write the na49 geometry structure
*-*    Root > gna49.Write()                   //Write all keys (in this case only one)
*-*  Note: all keys are also written on closing of the file, gna49.Close or
*-*  when the program exits, Root closes all open files correctly.
*-*  Once this file has been written, in a subsequent session, simply do:
*-*    Root > TFile gna49("na49.root")
*-*    Root > na49.Draw()
*-*

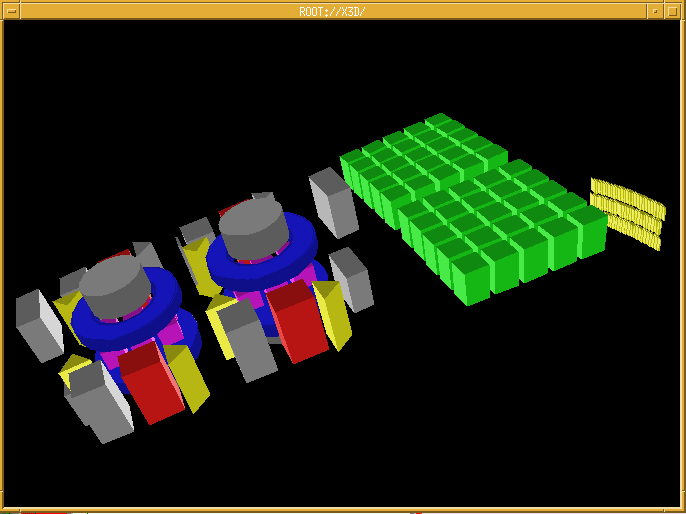

*-*  The figure below shows the geometry above using the x3d viewer.
*-*  This x3d viewver is invoked by selecting "View x3d" in the View menu
*-*  of a canvas (See example of this tool bar in TCanvas).

/*

*/

*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*Geometry default constructor*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*Geometry normal constructor*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ===========================

*-*-*-*-*-*-*-*-*-*-*-*-*Geometry default destructor*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ========================

*-*-*-*-*-*Change Current Geometry to this*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*        ===============================

*-*-*-*-*-*-*-*-*-*-*-*-*Draw this Geometry*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ==================

*-*-*-*-*-*-*-*-*Return pointer to Material with name*-*-*-*-*-*-*-*-*
*-*              ====================================

*-*-*-*-*-*-*-*-*Return pointer to Material with number*-*-*-*-*-*-*-*-*
*-*              ======================================

*-*-*-*-*-*-*Return pointer to node with name in the geometry tree*-*-*-*-*
*-*          =====================================================

*-*-*-*-*-*-*-*-*Return pointer to RotMatrix with name*-*-*-*-*-*-*-*-*-*
*-*              =====================================

*-*-*-*-*-*-*-*-*Return pointer to RotMatrix with number*-*-*-*-*-*-*-*-*-*
*-*              =======================================

*-*-*-*-*-*-*-*-*Return pointer to Shape with name*-*-*-*-*-*-*-*-*-*
*-*              =================================

*-*-*-*-*-*-*-*-*Return pointer to Shape with number*-*-*-*-*-*-*-*-*-*
*-*              ===================================

*-*-*-*-*-*-*-*-*-*-*-*List this geometry*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                   ===================

*-*-*-*-*-*-*-*Add a node to the current node in this geometry*-*-*-*-*-*-*
*-*            ===============================================

*-*-*-*-*-*-*-*Recursively remove object from a Geometry list*-*-*-*-*-*-*-*
*-*            =========================================

*-*-*-*-*-*-*-*-*Stream a class object*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*              =========================================

Inline Functions

            Float_t GetBomb()
         THashList* GetListOfShapes()
             TList* GetListOfNodes()
         THashList* GetListOfMaterials()
         THashList* GetListOfMatrices()
             TNode* GetCurrentNode()
             Bool_t IsFolder()
               void SetBomb(Float_t bomb = 1.4)
               void SetCurrentNode(TNode* node)
            TClass* Class()
            TClass* IsA()
               void ShowMembers(TMemberInspector& insp, char* parent)
          TGeometry TGeometry(TGeometry&)
